PRODUCT
FOR COMMERCIAL & UTILITY
SPOWERSERIES
We customize it as your demands
SpowerBox
SpowerContainer
SpowerPCS
air cooling box
liquid cooling box

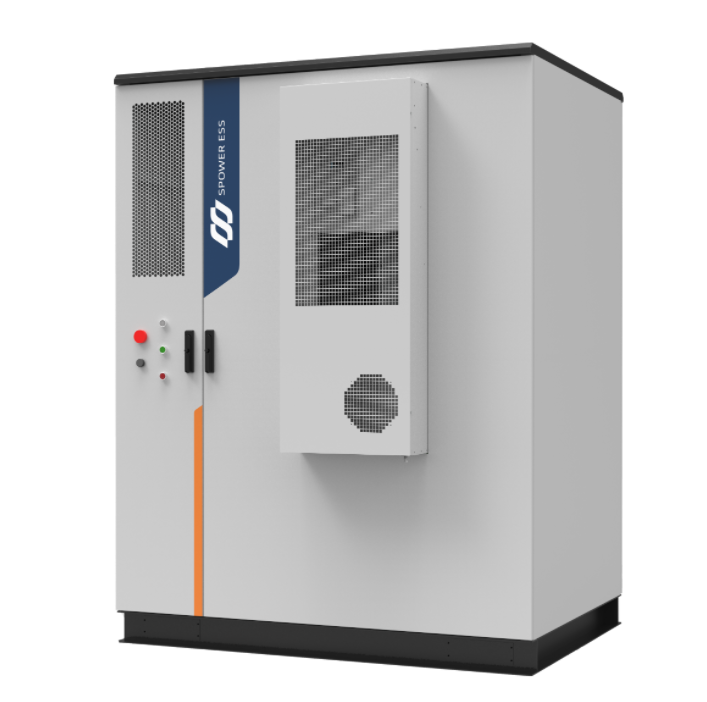

SpowerBox - GEN100/215
Air Cooling Intelligent Battery Box
For industrial, commercial, medium and large independent energy storage scenarios.

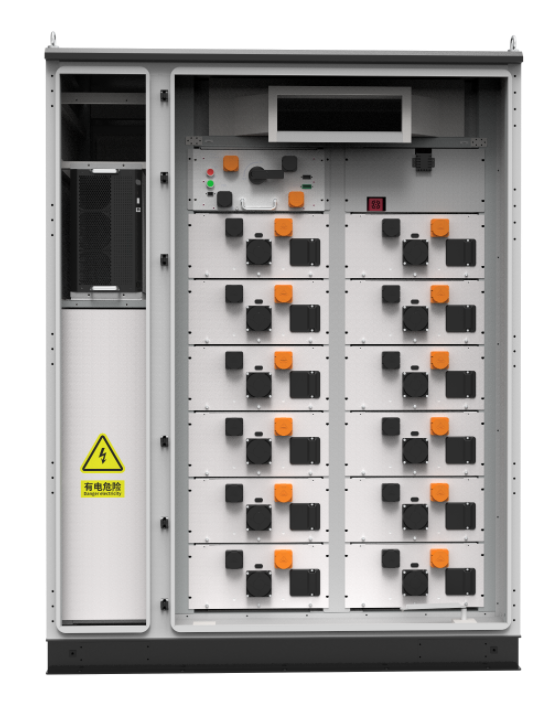

All in one
Battery pack + BMS + PCS + EMS combined in one cabinet,along with intelligent air conditioning system and fire protection system inside.

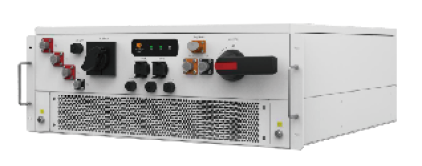

High Performance PCS

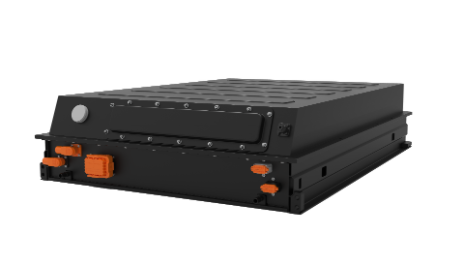

Low internal resistance Pack
Fire Protection system

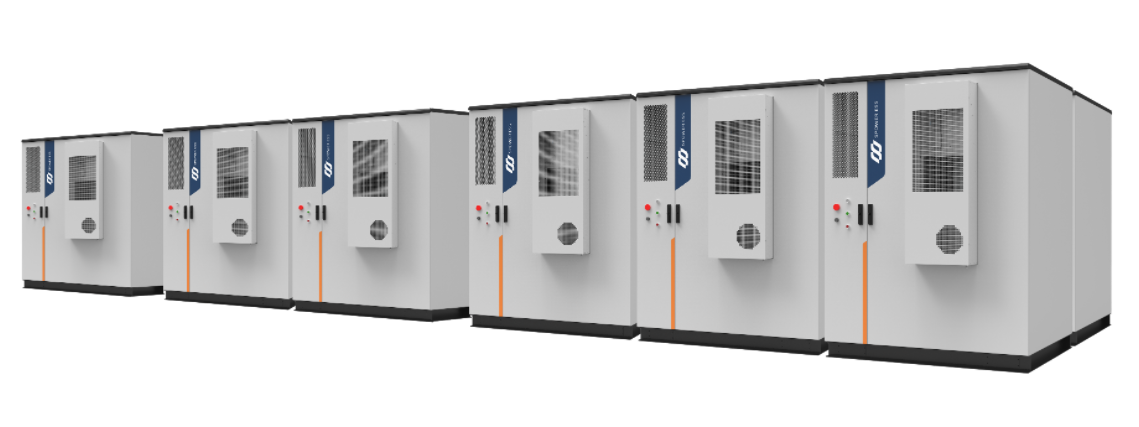

Flexible Allocation
Modular design, capacity and layout are adjustable, which is suitable for industrial & commercial, power grid, independent energy storage, and other application scenarios.
100kW / 215kWh, can be extended in parallel to upto 15 boxes.
215 kWh
Rated Capacity
≥ 98.5 %
Max. Efficiency of PCS
≥ 6000
System Cycle Life
-20 ~ 55 ℃
Operating Temperature
GEN100/215
Modules
GEN100/215
Rated Capacity
215 kWh
DC Operating Voltage
720 ~ 852 V
AC Rated Power
100 kVA
Charge Rate
≤0.5 C
Rated Grid Voltage
400 Vac, 3W+N+PE
Grid Frequency
50 Hz
Cycle Life
≥ 6000
Weight
2545 kg
Dimensions (W × H × D)
1257 × 2200 × 1438 mm
